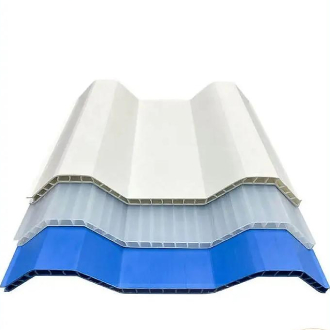

This PVC hollow corrugated roof tile production line is specially designed for manufacturing UPVC hollow roof sheets, T‑type trapezoidal roof tiles.
Finished PVC hollow roof tile features B1 grade flame retardancy, excellent heat insulation, noise reduction, weather resistance. Widely used for factory workshop roofing, warehouse canopy, agricultural building and other roofing projects.
1. Twin‑screw extruder: Plasticizes UPVC raw material evenly and stably
2. Special mould for hollow corrugated roof tile: Forms hollow wave structure of roof sheet
3. Vacuum calibration table: Shapes and cools the profile to keep stable dimension
4. Cooling system: Further cooling for finished roof tile
5. Haul‑off unit: Stable traction of plastic sheets
6. Cutting machine: Fixed‑length cutting according to required length
7. Stacker: Automatic stacking for finished roof tiles
1. Produces two kinds of roofing tiles: PVC hollow corrugated tile and T‑type trapezoidal tile with one line
2. Finished hollow tile reaches B1 flame‑retardant grade for safe roofing
3. Excellent heat insulation performance, indoor temperature can be reduced by 10‑12℃; thermal conductivity: 0.325W/(M·K)
4. Good noise‑absorbing effect, greatly reduces rain‑hitting noise under heavy rain and strong wind
5. Good weather resistance, long service life for outdoor roofing projects
6. Stable extrusion output, easy operation and low maintenance cost
Factory workshop roof covering
Warehouse building roofing

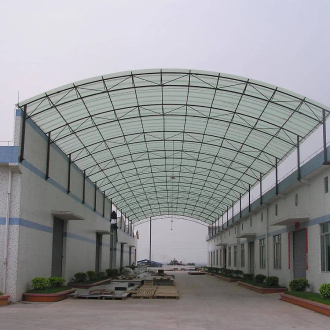

Factory canopy and sun‑shade shelter
Agricultural farm buildings, livestock sheds
Other industrial and civil roof projects
Yes. We adjust the configuration according to your raw material and finished product.
Overseas engineer on-site installation, operator training, 24/7 remote technical support and long-term spare parts supply.
Our MOQ is 1 set. Lead time varies based on specific production line models. The standard lead time is 40 working days, and the loading port is Shanghai.
